Topographic Survey Utah Contours, Elevations & Site Mapping
Professional topographic surveys for Utah homes, commercial properties and development sites—mapping the elevations, slopes, drainage and existing features your engineer, architect or builder needs to design on the property as it actually exists.
Topographic surveys start at $1,500.
Send the property address or parcel number, what you are
designing and any contour interval or CAD requirements from
your engineer. Ludlow will define the field scope and provide
a fixed-fee proposal before surveying begins.
$1,500+
Small Utah topo starting price
1′–5′
Common contour intervals
DWG / DXF / PDF
Design-ready file delivery
Since 1975
Surveying and engineering in Utah
Direct answer
What Is a Topographic Survey?
A topographic survey—also called a topographical survey—is a measured three-dimensional map of a property. It records ground elevations and surface features so contour lines, spot elevations, slopes, drainage paths, buildings, pavement, walls, visible utilities and other agreed site features can be shown accurately for design and planning.
01 · Existing conditions measured in three dimensions
What Does a Topographic Survey Show?
The final scope depends on what the design team needs. A residential lot and a large commercial site do not require the same density of information.
Spot Elevations
Individual measured elevations at building corners, pavement, curbs, walls, drainage features and other critical locations.
Benchmarks & Datum
Survey elevations are tied to an agreed vertical reference so the design team works from consistent elevation information.
Existing Improvements
Buildings, driveways, curbs, pavement, fences, walls, stairs, pads and other agreed improvements can be mapped.
Drainage Features
Ditches, swales, channels, culverts, curb flow lines and other visible drainage features important to site design.
Visible Utility Evidence
Manholes, valves, meters, poles, boxes and other visible surface evidence can be surveyed when included in scope.
Slopes, Banks & Vegetation
Banks, washes, rock features, tree lines and other natural conditions that affect site development.
Digital Terrain Model
A three-dimensional surface can be prepared for grading, earthwork, drainage and civil-engineering applications.
CAD-Ready Delivery
DWG, DXF and PDF deliverables allow the survey to become the base drawing for architectural and engineering design.
Measure before you design
The Topographic Survey Should Come Before the Site Plan.
Grading, drainage, driveways, retaining walls, finished-floor elevations and utility design all depend on the existing ground. When a project is designed from assumed elevations, the errors usually appear later as earthwork, drainage or construction problems. The topo creates the measured base before those design decisions are made.
02 · Common project triggers
When Do You Need a Topographic Survey?
Any project where elevation, slope, drainage or existing site features influence the design is a strong candidate for topographic surveying.
Residential Construction
Map the lot before deciding finished-floor elevation, driveway grade, drainage, retaining walls and grading.
Site Development
Provide the base map for parking, access, building pads, stormwater, utilities and site grading.
Additions & Major Remodels
Document the relationship between the house, lot grade, neighboring improvements and proposed addition.
Grading & Stormwater Design
Measure high points, low points, flow paths and existing drainage conditions before redesigning the site.
Roads, Utilities & Access
Profiles and elevation data support road, driveway, water, sewer and other linear infrastructure design.
Subdivision Design
Use existing terrain to guide lot layout, roadway grades, stormwater systems and utility planning.
03 · Reading the ground on paper
What Do Contour Lines Tell You?
A contour line connects locations at the same elevation. The spacing between the lines makes slope immediately visible: widely spaced contours indicate gentler terrain, while tightly spaced contours indicate steeper ground.
For design work, the contour interval should match the project. A one-foot interval can be appropriate for detailed residential grading. Two-foot intervals are common on many larger sites, while five-foot intervals may be sufficient for broader terrain planning where less detail is needed.
Do not choose the interval only because “more detail sounds better.”
Ask the engineer or architect what the design requires.
Tighter contour intervals require enough measured data to
support that level of detail.
04 · Utah terrain changes the field approach
Topographic Surveying Across Utah
Utah's valley floors, Wasatch benches, mountain lots, desert washes and rural acreage create very different topographic survey conditions.
Bench & Foothill Lots
Slope frequently controls driveway grade, retaining walls, finished-floor elevation, walkout basements, drainage and how a structure steps into the terrain.
Residential & Infill Sites
The ground may look flat, but relatively small elevation differences can determine whether runoff moves toward the street, a neighboring lot or the building.
Washes & Alluvial Terrain
Natural drainage paths, swales and irregular ground can be important even where the overall site looks open and gently sloped.
Park City & High-Elevation Sites
Steeper ground, seasonal access and complex terrain can increase field effort and make an accurate surface model especially valuable.
Large Open Parcels
Large sites can benefit from a combination of GNSS control, ground surveying and aerial mapping to collect dense terrain information efficiently.
Developed Sites
Buildings, curb and gutter, pavement, parking, utilities, walls and drainage infrastructure create a feature-dense survey even where the ground itself is relatively flat.
Elevation Data Supports Drainage Design
Surveyed elevations allow engineers to understand how water moves across and through a site instead of relying on visual impressions of slope.
Control Is the Framework of the Survey
Horizontal and vertical control gives every measured feature a consistent position and elevation so the design team can use the survey reliably.
05 · Match the equipment to the property
How We Collect Topographic Survey Data
There is no single “best” instrument for every site. The correct field method depends on terrain, vegetation, parcel size, accuracy needs and the features that must be mapped.

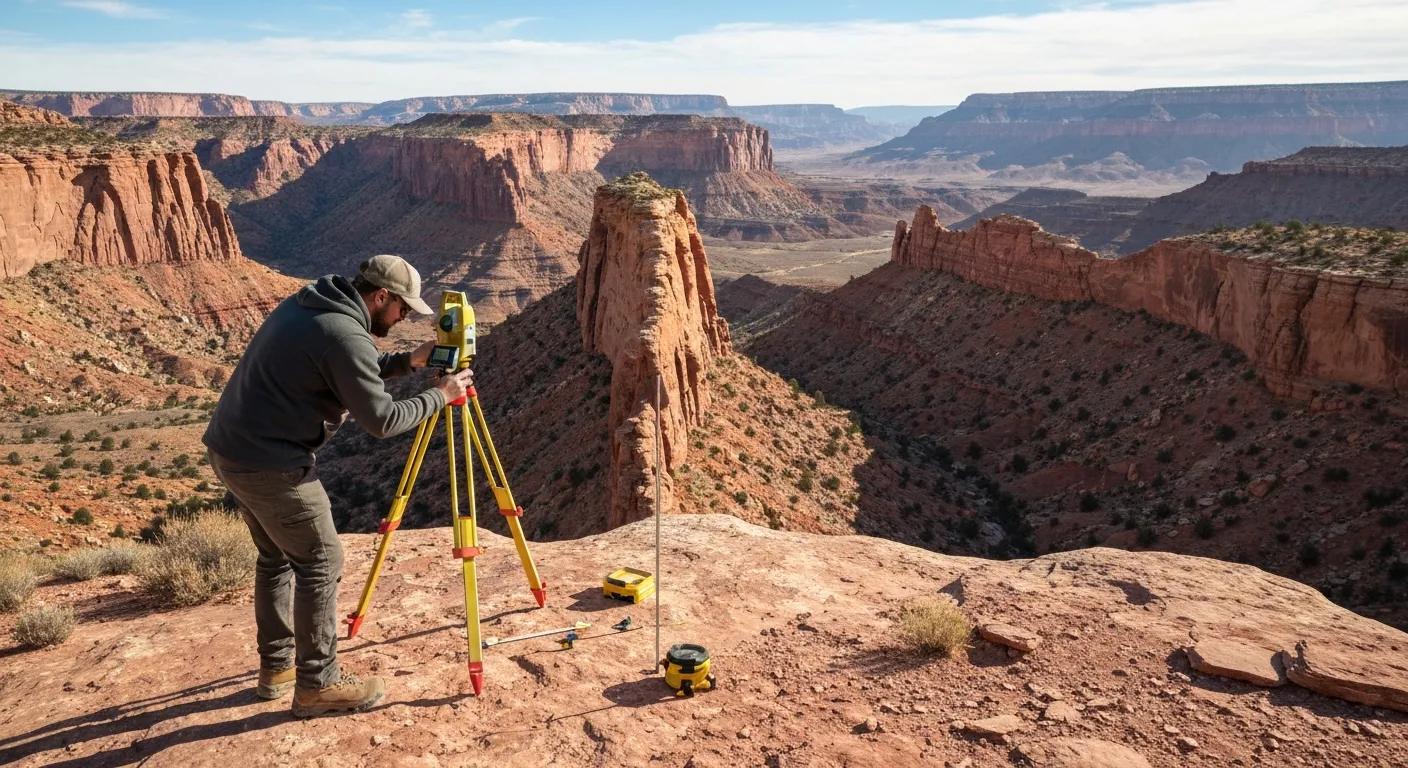

Robotic Total Station
Excellent for detailed feature collection, tight sites, tree cover, structures and locations where direct line-of-sight measurement provides the best result.
Survey-Grade GNSS
Efficient for control and open-site measurements where satellite geometry and field conditions support professional survey accuracy.
UAV / Aerial Mapping
Useful on larger open sites where dense surface data can be collected efficiently. Ground control and licensed-surveyor review remain part of the professional workflow.
Ground survey remains essential
Why a Drone Does Not Replace the Topographic Surveyor
Aerial mapping is extremely useful on the right property, but it cannot reliably measure terrain hidden beneath dense vegetation, features under roof overhangs or every critical break line needed for design.
The topographic survey is therefore built around the result the engineer needs—not around a particular piece of equipment. Ground and aerial methods can be combined when that produces the most complete and efficient dataset.
Dense tree cover:
ground methods may be required where imagery cannot see the actual terrain.
Critical elevations:
direct measurements can verify building, curb, structure and drainage elevations.
Boundary information:
topographic aerial imagery does not independently establish legal property lines.
Quality control:
survey checkpoints provide an independent test of mapped elevation information.
06 · From project scope to CAD
How a Topographic Survey Works
Defining the end use before fieldwork helps avoid paying for unneeded information—or discovering later that an important feature was never included.
1
Define the Design Need
Send the property, project purpose, required features, contour interval and preferred file format.
2
Establish Control
Set or verify horizontal and vertical control appropriate for the project and required coordinate system.
3
Collect Field Data
Measure terrain elevations, break lines, improvements, drainage and the other site features included in the scope.
4
Build the Surface
Process the field information into contours, spot elevations, feature layers and the design surface.
5
PLS Review & Delivery
Review the mapping and deliver the agreed DWG, DXF, PDF or other project files.
07 · 2026 Utah planning ranges
Topographic Survey Cost in Utah
Price depends on acreage, terrain, vegetation, feature density, access, contour interval, control requirements, travel and the digital deliverables required by the design team.
| Project Type | Typical Scope | Planning Range |
|---|---|---|
| Small residential lot | Detailed site topo, contours, spot elevations and visible improvements | $1,500–$3,000 |
| Boundary + topographic survey | Property-line survey combined with design-ready elevation mapping | $2,000–$4,500 |
| Residential acreage | Larger property with expanded terrain and feature collection | $2,500–$4,500+ |
| Commercial site | Feature-dense mapping for grading, drainage, utilities and site design | $3,000–$8,000+ |
| Large open site | Ground control plus dense surface collection, often with aerial support | Scope based |
| Mountain / difficult terrain | Steep grades, access limitations or unusually dense field requirements | Scope based |
08 · Give your designer usable data
Topographic Survey Deliverables
Tell Ludlow what software and coordinate requirements your engineer or architect uses before the field survey so the final data arrives ready for the next phase.
DWG Files
A common AutoCAD-compatible format for civil engineering, architectural design and land-development work.
DXF Files
A widely supported exchange format for transferring survey geometry between different design platforms.
PDF Survey
Readable plan-format documentation showing contours, features, notes and survey information.
Surface / Terrain Data
Three-dimensional survey information can support grading, drainage and earthwork design where included in scope.
Control & Benchmark Data
Reference information helps designers and future survey crews work from the same site coordinate and elevation framework.
Additional Digital Data
Point files, imagery, break lines or other agreed digital deliverables can be provided when the project requires them.
09 · Survey → engineering → construction
The Topographic Survey Is the Base Map for What Comes Next.
Ludlow's surveyors and engineers work within the same firm, so the measured existing conditions can move directly into site planning, grading, drainage, subdivision and civil design without rebuilding the project base from scratch.
When construction begins, the approved design can then move back to the field through construction staking.
10 · Statewide Utah service
Topographic Surveys Across Utah
Ludlow Engineering is based in Nephi and performs topographic surveys statewide, with strong coverage throughout central Utah, Utah County and the Wasatch Front.
Utah Valley
Utah County
Residential, commercial and development surveying throughout Utah County.
Central Utah CountyProvo
Topographic surveys for residential lots, foothill sites and commercial development.
North Utah CountyLehi
Existing-condition mapping for rapid-growth residential and commercial development.
Central UtahSanpete County
Valley-floor, acreage and development topographic surveying.
Sevier CountyRichfield
Topographic and civil survey support for central Utah construction and development.
Eastern UtahPrice
Surveying for commercial, industrial, infrastructure and rural projects.
11 · Topographic survey resource hub
Continue From Survey to Design
This page owns topographic-survey service intent. Use these permanent pages for boundary, pricing, aerial mapping and the engineering work that follows.
Parent hub
Land Survey Services
Compare boundary, ALTA, topographic, aerial and construction surveys.
Property linesBoundary Surveys
Establish legal property lines and corners before designing near a boundary.
PricingLand Survey Cost Guide
Compare current Utah pricing across topographic, boundary, ALTA and construction surveys.
DesignSite Planning & Design
Use the measured survey base for site layout, grading, drainage, access and utilities.
EngineeringCivil Engineering
Move from existing conditions into grading, drainage, stormwater and infrastructure design.
ConstructionConstruction Staking
Transfer the approved design back to the ground for construction.
Large sitesUAV Aerial Surveying
Understand where aerial mapping can support efficient terrain collection on larger open properties.
FloodplainElevation Certificates
Property and building elevation documentation for applicable floodplain requirements.
Survey basicsWhat Is a Land Survey?
Compare the purpose of boundary, topographic, ALTA and other survey types.
12 · Direct answers
Topographic Survey FAQ
Common questions Utah homeowners, builders, architects, engineers and developers ask before ordering a topo.
How much does a topographic survey cost in Utah?
A small residential topographic survey commonly costs $1,500–$3,000. Larger parcels and commercial sites generally run $3,000–$8,000 or more depending on acreage, terrain, feature density and deliverables.
What is a topographic survey?
A topographic survey is a measured three-dimensional map of a property showing ground elevation and agreed natural and constructed site features. It is commonly used as the design base for grading, drainage, architecture and civil engineering.
What is the difference between topographic and boundary surveying?
A boundary survey determines the legal property lines and corners. A topographic survey maps terrain elevations and existing site features. Many building projects need both.
What contour interval do I need?
The engineer or architect should normally establish the required interval. One-foot contours are common for detailed residential design, while two- or five-foot intervals can suit larger or less detailed sites.
Does a topographic survey show utilities?
Visible utility evidence such as manholes, meters, valves, poles and boxes can be included in the survey scope. A topographic survey does not automatically locate every underground utility.
Does a topographic survey include property lines?
Not automatically. If the design needs reliable legal property lines as well as terrain information, request a combined boundary and topographic survey.
How long does a topographic survey take?
A small site may require only several hours of fieldwork, while larger or complex sites can take several days. Drafting, surface modeling, quality control and the current workload also affect final delivery.
Can a topographic survey be done by drone?
Yes, on suitable larger and open sites. Small properties, tree-covered ground, obstructed features and tight-detail work often require conventional ground methods, and many projects use both.
What files do I receive?
Depending on scope, Ludlow can provide DWG, DXF and PDF files along with contour, spot-elevation, feature, control and three-dimensional terrain information needed by the design team.
Do I need a current topographic survey?
Often yes for new design work. Grading, landscaping, construction, erosion and other changes can make an older site survey inconsistent with current ground conditions.
Can Ludlow do the engineering after the survey?
Yes. Ludlow has Professional Land Surveyors and Professional Engineers in-house, allowing the topographic survey to move directly into site, grading, drainage, subdivision and civil design.
What should I send for a quote?
Send the property address or parcel number, approximate project area, what you are designing, your deadline, required contour interval if known and any CAD or coordinate requirements from your engineer or architect.
